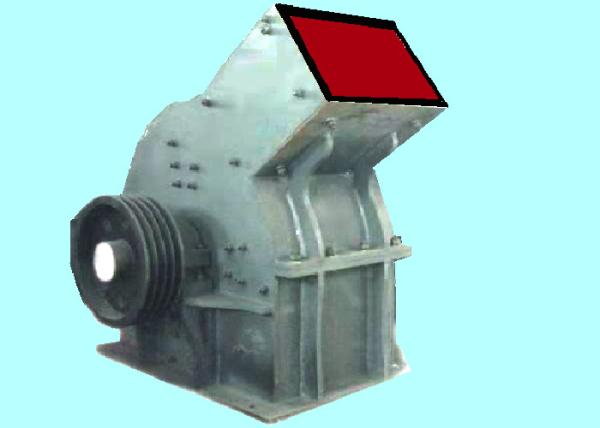

1. Product description
Hammer crusher is suitable for finely crushing medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highway, combustion and other sectors. The crusher can adjust the gap between the grate bars and change the discharge particle size according to user requirements to meet the different needs of different users.
2. Technical Parameters
| Model | Rotor Diameter/mm | Rotor Width/mm | Max Feeding Size/mm | Finished particle size/mm | Capacity (t/h) | Power/Kw | Overall SizeL*W*H/mm |
| PC400x300 | 400 | 600 | < 100 | 5-10 | 5-10 | 11 | 855*795*860 |
| PC600x400 | 600 | 400 | < 220 | 5-15 | 10-22 | 22 | 1150*1095*1230 |
| PC800x600 | 800 | 600 | < 300 | 5-20 | 18-40 | 45 | 2360*1490*141 |
| PC1000X800 | 1000 | 800 | < 350 | 5-35 | 25-50 | 75 | 1600*1390*1575 |
| PC1000X1000 | 1000 | 1000 | < 350 | 5-35 | 30-55 | 132 | 1800*1590*1775 |
| PC1250X1250 | 1250 | 1250 | < 350 | 5-35 | 35-65 | 180 | 2000*1600*1890 |
| PC1400X1400 | 1400 | 1400 | < 350 | 5-35 | 50-100 | 220 | 2365*1870*2220 |
| PC1600*1600 | 1600 | 1600 | < 350 | 5-35 | 100-150 | 480 | 3050*2850*2800 |
3, Product advantages
1. The working hammer head of the hammer crusher is cast with new technology, which is wear-resistant and impact-resistant;
2. The hammer crusher can adjust the required particle size according to customer requirements;
3. The structure of the hammer crusher is sealed, which solves the problem of dust pollution and dust leakage in the crushing workshop;
4. The overall design of the hammer crusher has the advantages of beautiful appearance, compact structure, few wearing parts and convenient maintenance. It is an upgrade and replacement of production.
4, Working principle
The hammer crusher motor drives the rotor to rotate at high speed in the crushing cavity. The material is fed into the machine from the upper feeding port, and is crushed by the impact, impact, shearing and grinding action of the high-speed moving hammer. In the lower part of the rotor, there is a sieve plate, the particles smaller than the sieve hole size in the crushed material are discharged through the sieve plate, and the coarse particles larger than the sieve hole size are retained on the sieve plate and continue to be hit and ground by the hammer, and finally pass through the sieve Exhaust from the machine.
5, Factory manufacturing and transport
